20 Sec Fujikura 12R FTTH Fiber Optic Splicing Machine

Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.

20 Sec Fujikura 12R FTTH Fiber Optic Splicing Machine

  • 1
  • 2
  • 3

Brand Name : Fujikura

Model Number : Fujikura 12R

Certification : CE, RoHS

Place of Origin : Hubei, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Pieces/Month

Delivery Time : within 10 days of payment

Packaging Details : carton & PVC packaging

Terminals : USB 2.0

Electrode Life : 1,500 splices

Splice Time : 20 sec with SM

Tube Heater : 30 heating modes

Weight : 776g/1 .71lbs

Dimensions : 121Wx162Dx57H(mm)

Contact Now

Fujikura 12R Light Portable Fusion Splicer

Overview

The Fujikura 12R is the world’s smallest, lightest and most portable fusion splicer available today . Despite its incredibly small size, this ruggedized, full-featured unit offers unmatched versatility for splicing in the most challenging environments . The innovative transit case and work tray provide multiple options for the best utilization of available work space while the long life battery provides power for up to 100 splice cycles which include application of the splice protection sleeve .

The Fujikura 12R incorporates features typically found only in more expensive models .

The large 4 .5" monitor provides a crystal clear image, even in the brightest sunlight, for evaluating splice quality . The electrode life has been extended to 1,500 splices, minimizing downtime for replacement and stabilization . Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available . The fully ruggedized chassis provides for shock, dust and moisture protection while the two camera observation system provides for accurate fiber alignment and loss estimation calculations. The Fujikura 12R is also fully compatible with the FuseConnect line of fusion installable connectors .

Backed by the best service team in the industry, the Fujikura 12R is the ideal splicer to use when portability, ruggedness, versatility and reliability are needed for your splicing application.

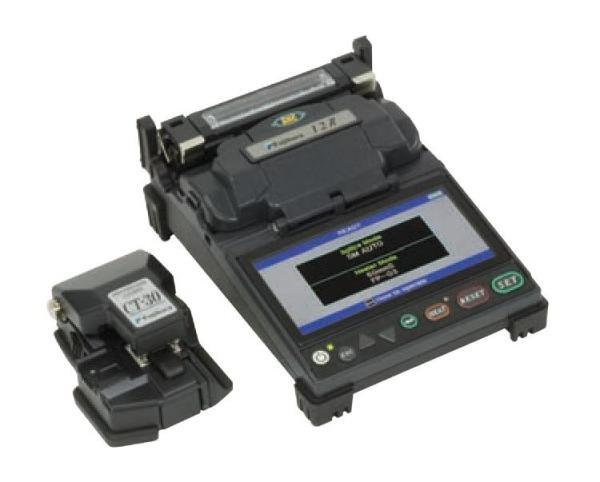

Fujikura 12R Kit

Features

World’s smallest splicer at 4 .76"W x 6 .38"D x 2 .24"H

Fully ruggedized for shock, moisture and dust resistance

Transit case converts to easy to use workstation

Dual camera, fixed v-groove alignment technology

Extended life electrodes

Long life battery (100 splices/shrinks per charge)

Ordering Information

DESCRIPTION AFL NO.

Fujikura 12R Fusion Splicer

Includes: ADC-19 AC Adapter, BTR-10 Battery Pack (installed), FH-50-4 Fiber Holders (Pair), ACC-09 Power Cord, ELCT2-12 Spare Electrodes (Pair), Operation Manual on CD, Quick Reference Guide, AP-01 Alcohol Container, SD01 Screwdriver and CC-29 Transit Case

S015571

Fujikura 12R Fusion Splicer Kit

Includes: CT-30 Cleaver, ADC-19 AC Adapter, BTR-10 Battery Pack (installed),

FH-50-4 Fiber Holders (Pair) FH-50-250 Fiber Holders (Pair), FH-50-900 Fiber Holders (Pair), ACC-09 Power Cord, HJS-03 Hot Jacket Stripper, ELCT2-12 Spare Electrodes (Pair), Operation Manual on CD, Quick Reference Guide, AP-01 Alcohol Container,

SD01 Screwdriver and CC-29 Transit Case

S015667

Specifacation

PARAMETER VALUE
Model Fujikura 12R Fusion Splicer
Applicable Fibers Single-mode (G .652 & G .657), Multimode (G .651), DS (G .653), NZDS (G .655)
Fiber Count Single to 4-fiber ribbon
Cladding Diameter 125 μm
Coating Diameter 250 μm and 900 μm
Fiber Cleave Length 10 mm
Typical Average Splice Loss 0 .05 dB (SM), 0 .02 dB (MM), 0 .08 dB (DS) and 0 .08 dB (NZDS)
Splice Time Typical 20 sec with SM
Arc Calibration Method Automatic, real-time by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes Total 100 splice modes
Splice Loss Estimate Based upon dual camera cladding alignment data
Storage of Splice Result Last 2,000 splices
Fiber Display 4 .5 inch TFT color LCD with X or Y view or both X and Y view simultaneously
Magnification 66X magnification in X or Y view; 33X magnification in X and Y view
Viewing Method 2 axis CMOS camera
Operating Condition 0 to 3,660 m above sea level (single fiber),0 to 95% RH non-dew, -10 to 50°C respectively
Mechanical Proof Test 1 .96 to 2 .25 N
Tube Heater 30 heating modes
Tube Heater Time Typical 30 sec with FP-03 (60 mm) and FP-04 sleeves
Protection Sleeve Length 60 mm, 40 mm, micro
Splice/Heat with Battery Typical 100 cycles with BTR-10
Electrode Life 1,500 splices
Power Supply Auto select from 100V to 240V with AC adapter, 14 .8 V DC with installed battery
Terminals USB 2 .0
Wind Protection Maximum wind velocity of 15 m/s . (34 mph)
Dimensions 121W x 162D x 57H (mm) / 4 .76 W x 6 .38 D x 2 .24 H (inches)
Weight with Battery 776 g / 1 .71 lbs .

20 Sec Fujikura 12R FTTH Fiber Optic Splicing Machine
